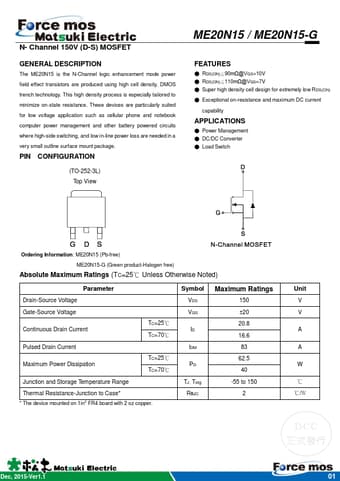

ME20N15 Datasheet, Mosfet, Matsuki

ME20N15 Features

• Mosfet
• RDS(ON)≦90mΩ@VGS=10V
• RDS(ON)≦110mΩ@VGS=7V
• Super high density cell design for extremely low RDS(ON)
• Exceptional on-resistance and maximum DC curre

PDF File Details

Part number:

ME20N15

Manufacturer:

Matsuki

File Size:

950.52kb

Download:

📄 Datasheet

Description:

N-channel mosfet. The ME20N15 is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density, DMOS trench

ME20N15 Application

• Applications
• Power Management
• DC/DC Converter
• Load Switch
• Th Ordering Information: ME20N15 (Pb-free) ME20N1
