LX8386-33CDD, LX8 - 1.5 A LOW DROPOUT POSITIVE REGULATORS

Microsemi Corporation

Datasheet Details

Part number	LX8386-33CDD, LX8
Manufacturer	Microsemi Corporation
File Size	223.75 KB
Description	1.5 A LOW DROPOUT POSITIVE REGULATORS
Datasheet	LX8-386.pdf
Note	This datasheet PDF includes multiple part numbers: LX8386-33CDD, LX8. Please refer to the document for exact specifications by model.

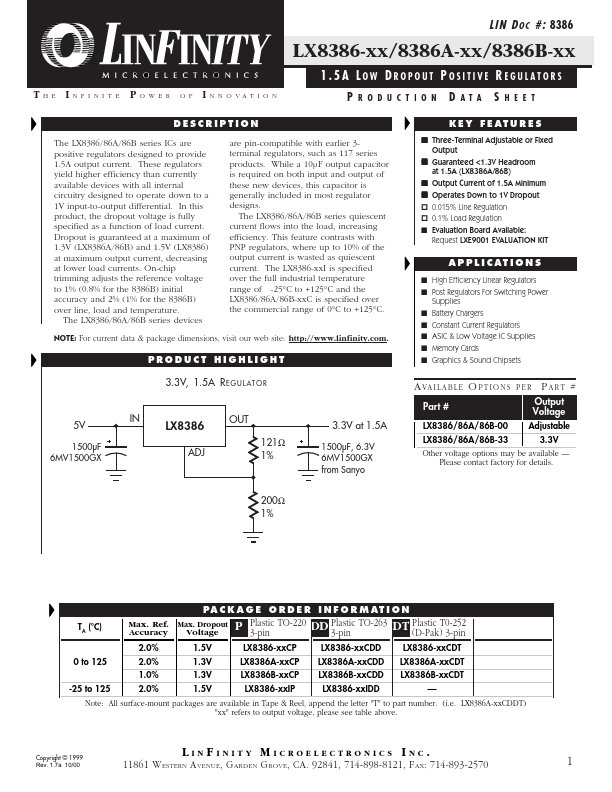

The LX8386/86A/86B series ICs are positive regulators designed to provide 1.5A output current.

expected of voltage regulators: short circuit protection, safe operating area protection and automatic thermal shutdown if the device temperature rises above approximately 165°C. Use of an output capacitor is.
