USB0424 TVSarray Series

Microsemi Corporation

Description

8700 E.Thomas Road Scottsdale, AZ 85251 Tel: (480) 941-6300 Fax: (480) 947-1503 USB0403 thru USB0424 TVSarray ™ Series .
(300 watt) This 4 pin 1 line unidirectional ULTRA LOW CAPACITANCE array is designed for use in applications requiring board level protection from volt.

📥 Download Datasheet

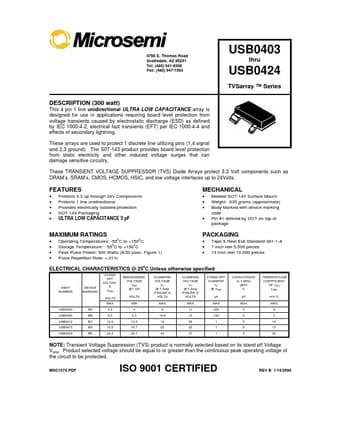

USB0424 Datasheet Preview — Preview of USB0424 PDF

Datasheet Specifications

Part number: USB0424
Manufacturer: Microsemi ↗ Corporation
File Size: 184.55 KB
Datasheet: USB0424_MicrosemiCorporation.pdf
Description: TVSarray Series

Features

* Protects 3.3 up through 24V Components Protects 1 line unidirectional Provides electrically isolated protection SOT-143 Packaging ULTRA LOW CAPACITANCE 5 pF MECHANICAL
* Molded SOT-143 Surface Mount Weight: .035

Applications

* requiring board level protection from voltage transients caused by electrostatic discharge (ESD) as defined by IEC 1000-4-2, electrical fast transients (EFT) per IEC 1000-4-4 and effects of secondary lightning. These arrays are used to protect 1 discrete line utilizing pins (1,4 signal and 2,3 groun
