M15KP85A, M15KP22A - Transient Voltage Suppressor Protection Device

Microsemi

The M15KP85A by Microsemi is a Transient Voltage Suppressor Protection Device. Below is the official datasheet preview.

📥 Download Datasheet

M15KP85A Transient Voltage Suppressor Protection Device by Microsemi - Datasheet Preview — Official preview page of the **M15KP85A** Transient Voltage Suppressor Protection Device datasheet (Microsemi).

Datasheet Details

Part number	M15KP85A, M15KP22A
Manufacturer	Microsemi
File Size	387.14 KB
Description	Transient Voltage Suppressor Protection Device
Datasheet	M15KP22A-Microsemi.pdf
Note	This datasheet PDF includes multiple part numbers: M15KP85A, M15KP22A. Please refer to the document for exact specifications by model.

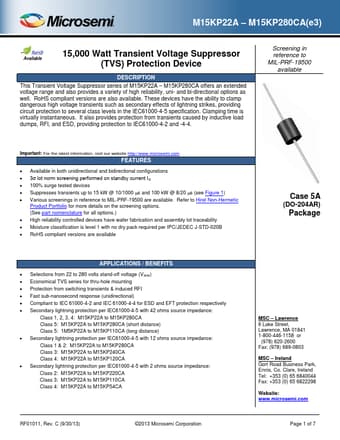

Additional preview pages of the M15KP85A datasheet.

M15KP85A Product details

Description

This Transient Voltage Suppressor series of M15KP22A M15KP280CA offers an extended voltage range and also provides a variety of high reliability, uni- and bi-directional options as well.

Features

Available in both unidirectional and bidirectional configurations.
3σ lot norm screening performed on standby current ID.
100% surge tested devices.
Suppresses transients up to 15 kW @ 10/1000 µs and 100 kW @ 8/20 µs (see Figure 1).
Various screenings in reference to MIL-PRF-19500 are available. Refer to Hirel Non-Hermetic Product Portfolio for more details on the screening options. (See part nomenclature for all options. ).
High reliability.
