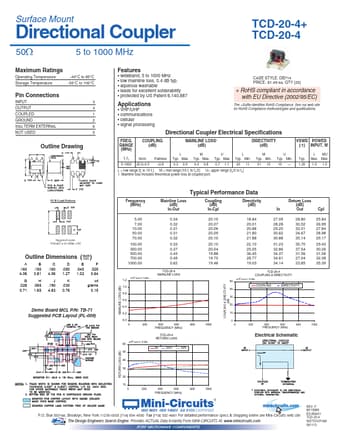

TCD-20-4, TCD-20-4_Mini Directional Coupler

TCD-20-4 Description

www.DataSheet.co.kr Directional Coupler 50Ω Maximum Ratings Operating Temperature Storage Temperature -40°C to 85°C -55°C to 100°C Surface Mount.

TCD-20-4 Features

* wideband, 5 to 1000 MHz
* low mainline loss, 0.4 dB typ.
* aqueous washable
* leads for excellent solderability
* protected by US Patent 6,140,887 CASE STYLE: DB714 PRICE: $1.49 ea. QTY (25) Pin Connections INPUT OUTPUT COUPLED GROUND 50Ω TERM EXTERNAL

TCD-20-4 Applications

* VHF/UHF
* communications
* cellular
* signal processing Directional Coupler Electrical Specifications FREQ. RANGE (MHz) fL-fU 5-1000 Outline Drawing COUPLING (dB) Nom. 20.0±0.5 Flatness ±0.8 MAINLINE LOSS1 (dB) L Typ. Max. 0.3 0.9 M Typ. Max. 0.4 0.8 U Typ. Max

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TCD-20-4, TCD-20-4_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
TCD-20-4, TCD-20-4_Mini
Manufacturer
Mini-Circuits
File Size
352.56 KB
Datasheet
TCD-20-4_Mini-Circuits.pdf
Description
Directional Coupler
Note
This datasheet PDF includes multiple part numbers: TCD-20-4, TCD-20-4_Mini.
Please refer to the document for exact specifications by model.
