TCD-20-4-75+ Datasheet, Coupler, Mini-Circuits

TCD-20-4-75+ Features

  • Coupler
  • wideband, 40-1200 MHz
  • excellent flatness, ±0.5 dB typ. each band
  • better performance than MA-COM EMDC-20-2-75
  • footprint compatible to EMDC-10

PDF File Details

Part number:

TCD-20-4-75+

Manufacturer:

Mini-Circuits

File Size:

349.88kb

Download:

📄 Datasheet

Description:

Directional coupler.

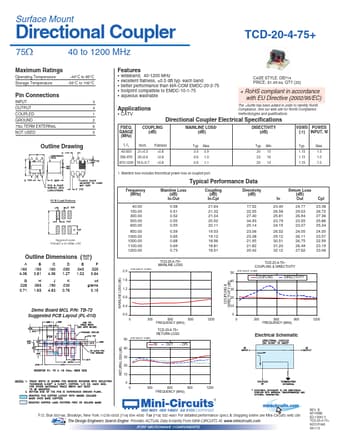

Datasheet Preview: TCD-20-4-75+ 📥 Download PDF (349.88kb)

TCD-20-4-75+ Application

  • Applications
  • CATV FREQ. RANGE (MHz) fL-fU 40-500 500-870 Directional Coupler Electrical Specifications COUPLING (dB) Nom. 21±0.5 20±0.6
