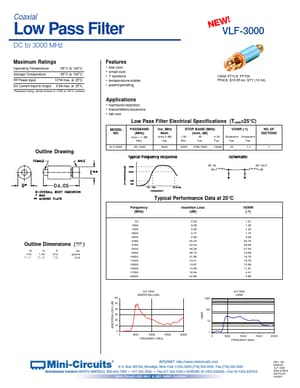

VLF-3000, VLF-3000_Mini Coaxial Low Pass Filter DC to 3000 MHz

Coaxial Low Pass Filter DC to 3000 MHz Maximum Ratings Operating Temperature Storage Temperature RF Power Input DC Current Input to Output -55°C to 1.

VLF-3000_Mini-Circuits.pdf

VLF-3000 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLF-3000, VLF-3000_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VLF-3000, VLF-3000_Mini

Manufacturer:

Mini-Circuits

File Size:

89.99 KB

Description:

Coaxial Low Pass Filter DC to 3000 MHz

Note:

This datasheet PDF includes multiple part numbers: VLF-3000, VLF-3000_Mini.
Please refer to the document for exact specifications by model.

Features

* low cost small size 7 sections temperature stable patent pending CASE STYLE: FF704 PRICE: $19.95 ea. QTY (10-24)

Applications

* harmonic rejection
* transmitters/receivers
* lab use Low Pass Filter Electrical Specifications (TAMB=25°C) MODEL NO. PASSBAND (MHz) (loss < 1 dB) Max. VLF-3000 DC-3000 fco, MHz Nom. (loss 3 dB) Typ. 3600 STOP BAND (MHz) (loss, dB) f 20 Min. 4350 30 Typ. 4780-7500 fr 20
