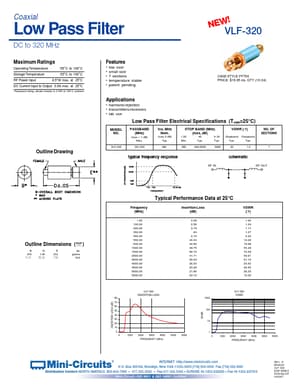

VLF-320, VLF-320_Mini Coaxial Low Pass Filter

Coaxial Low Pass Filter DC to 320 MHz Maximum Ratings Operating Temperature Storage Temperature RF Power Input -55°C to 100°C -55°C to 100°C 8.5 *.

VLF-320_Mini-Circuits.pdf

VLF-320 Datasheet Preview — This datasheet PDF includes multiple part numbers: VLF-320, VLF-320_Mini. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VLF-320, VLF-320_Mini

Manufacturer:

Mini-Circuits

File Size:

89.30 KB

Description:

Coaxial Low Pass Filter

Note:

This datasheet PDF includes multiple part numbers: VLF-320, VLF-320_Mini.
Please refer to the document for exact specifications by model.

Features

* low cost small size 7 sections temperature stable patent pending CASE STYLE: FF704 PRICE: $19.95 ea. QTY (10-24) DC Current Input to Output 0.5A max. at 25°C

Applications

* harmonic rejection
* transmitters/receivers
* lab use Low Pass Filter Electrical Specifications (TAMB=25°C) MODEL NO. PASSBAND (MHz) (loss < 1 dB) Max. VLF-320 DC-320 fco, MHz Nom. (loss 3 dB) Typ. 460 STOP BAND (MHz) (loss, dB) f 20 Min. 560 40 Typ. 640-2500 fr 20 Typ.
