ML62232

Positive Voltage Regulator

ML62232 Features

* l CMOS Low Power Consumption: Typical 3.3uA at Vout=5.0V l Output VoltageRange:2.0Vto6.0Vin0.1Vincrements l HighlyAccurate:OutputVoltage+2% l MaximumOutputCurrent:250mA (within the maximum power dissipation , Vout=5.0V) l SmallInput-Output VoltageDifferential: 0.12V at 100mA and 0.38V at 200mA l Inp

ML62232 General Description

v Block Diagram The ML62 is a group of positive voltage output, three-pin regulator which provides high output current even when the input/output voltage differential is small. The ML62 consists of a high-precision voltage reference, an error correction circuit, and a current limited output drive.

ML62232 Datasheet (533.69 KB)

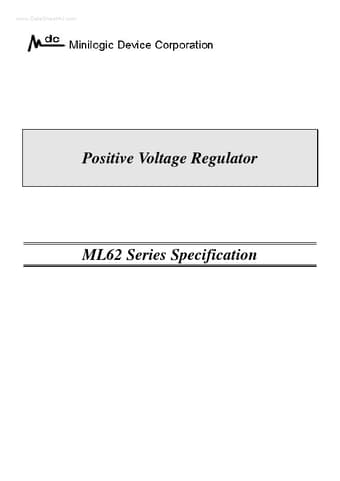

Preview of ML62232 PDF

Datasheet Details

Part number:

ML62232

Manufacturer:

Minilogic Device

File Size:

533.69 KB

Description:

Positive voltage regulator.
www.DataSheet4U.com Positive Voltage Regulator ML62 Series Specification ML62 Series Positive Voltage Regulator v Application u Battery Powered Equip.
