A9RB.1-1600 Single Axis Resonant Bonded MEMS Mirrors

Description

PRELIMINARY PRELIMINARY Single Axis Resonant Bonded MEMS Mirrors Datasheet A9RB Series: A9RB.1-1600, A9RB.1-2000, A9RB.1-2400 OVERVIEW Mirrorcle T.

📥 Download Datasheet

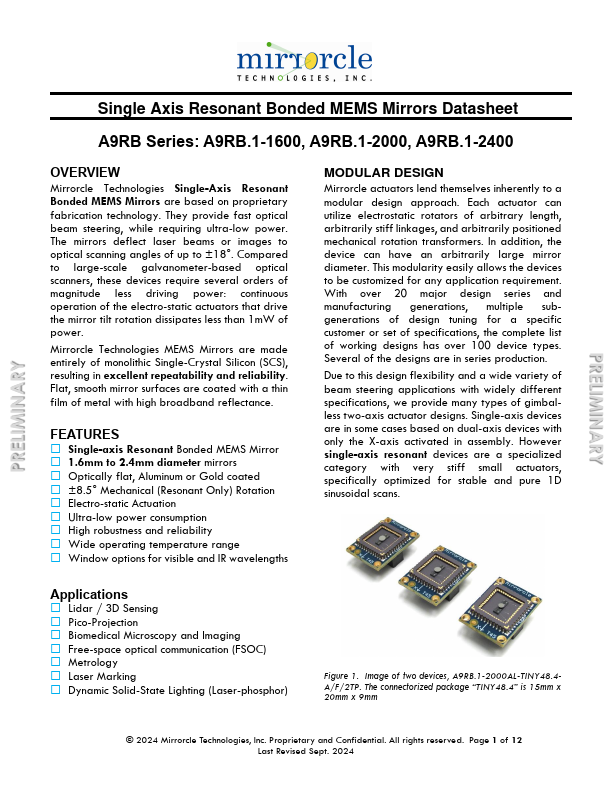

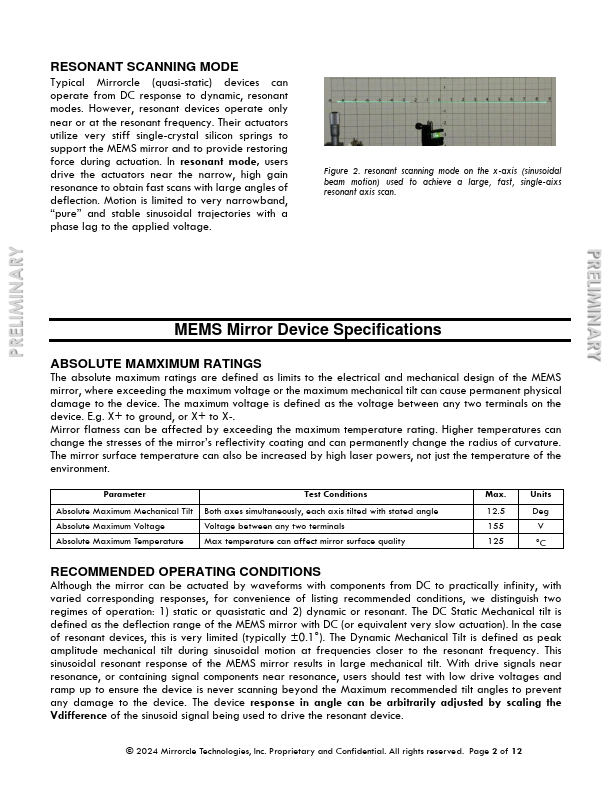

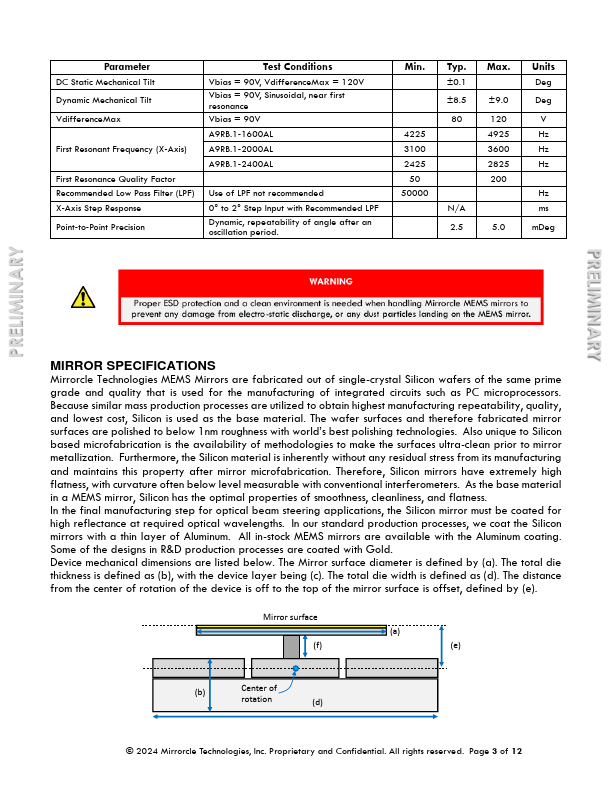

A9RB.1-1600 Datasheet Preview — Preview of A9RB.1-1600 PDF

Datasheet Specifications

Part number: A9RB.1-1600
Manufacturer: Mirrorcle
File Size: 872.01 KB
Datasheet: A9RB.1-1600-Mirrorcle.pdf
Description: Single Axis Resonant Bonded MEMS Mirrors

Features

*  Single-axis Resonant Bonded MEMS Mirror  1.6mm to 2.4mm diameter mirrors  Optically flat, Aluminum or Gold coated  ±8.5° Mechanical (Resonant Only) Rotation  Electro-static Actuation  Ultra-low power consumption  High robustness and reliability  Wide operating temperature range  Window opt

Applications

* with widely different specifications, we provide many types of gimballess two-axis actuator designs. Single-axis devices are in some cases based on dual-axis devices with only the X-axis activated in assembly. However single-axis resonant devices are a specialized category with very stiff small actu
