A9RB.1-2400, A9RB.1-1600 Datasheet - Mirrorcle

A9RB.1-2400 Single Axis Resonant Bonded MEMS Mirrors

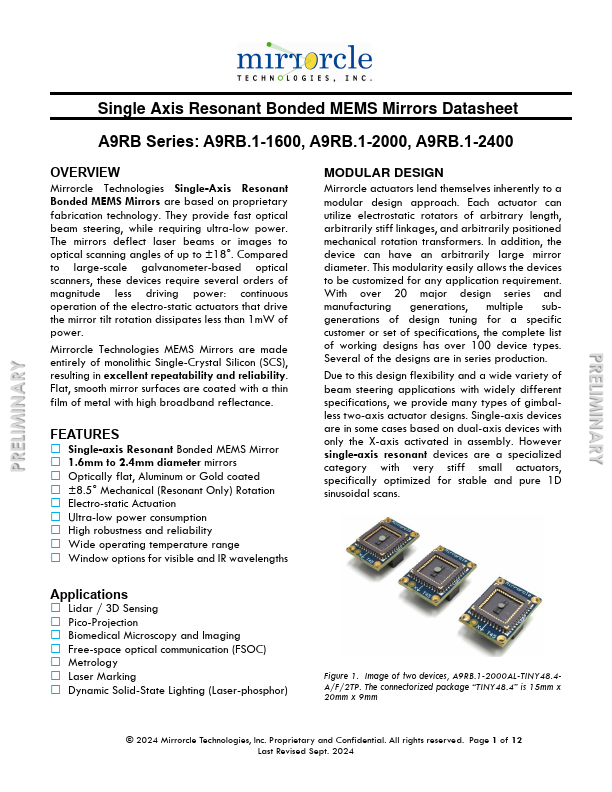

PRELIMINARY PRELIMINARY Single Axis Resonant Bonded MEMS Mirrors Datasheet A9RB Series: A9RB.1-1600, A9RB.1-2000, A9RB.1-2400 OVERVIEW Mirrorcle Technologies Single-Axis Resonant Bonded MEMS Mirrors are based on proprietary fabrication technology. They provide fast optical beam steering, while requiring ultra-low power. The mirrors deflect laser beams or images to optical scanning angles of up to ±18°. Compared to large-scale galvanometer-based optical scanners, these devices require several.

A9RB.1-2400 Features

*  Single-axis Resonant Bonded MEMS Mirror  1.6mm to 2.4mm diameter mirrors  Optically flat, Aluminum or Gold coated  ±8.5° Mechanical (Resonant Only) Rotation  Electro-static Actuation  Ultra-low power consumption  High robustness and reliability  Wide operating temperature range  Window opt

A9RB.1-1600-Mirrorcle.pdf

This datasheet PDF includes multiple part numbers: A9RB.1-2400, A9RB.1-1600. Please refer to the document for exact specifications by model.

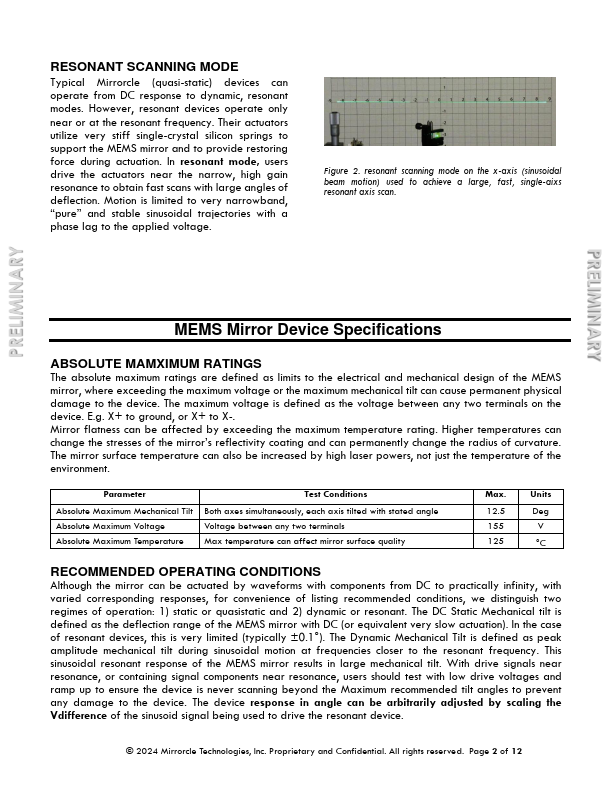

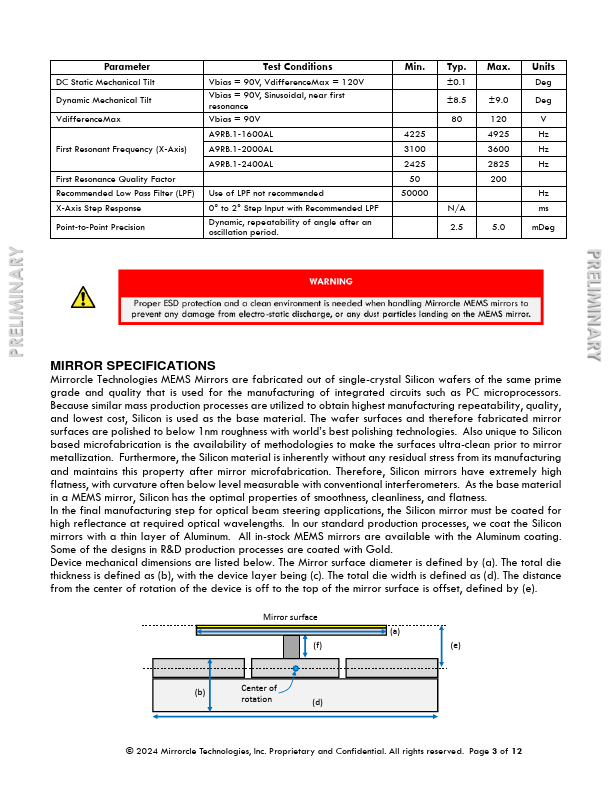

A9RB.1-2400 Datasheet Preview Page 2 A9RB.1-2400 Datasheet Preview Page 3

Datasheet Details

Part number:

A9RB.1-2400, A9RB.1-1600

Manufacturer:

Mirrorcle

File Size:

872.01 KB

Description:

Single axis resonant bonded mems mirrors.

Note:

This datasheet PDF includes multiple part numbers: A9RB.1-2400, A9RB.1-1600.
Please refer to the document for exact specifications by model.
