MT8926 - T1 Performance Monitoring Adjunct Circuit

Product Overview

Mitel Networks Corporation

Datasheet Details

Part number	MT8926
Manufacturer	Mitel Networks Corporation
File Size	266.01 KB
Description	T1 Performance Monitoring Adjunct Circuit
Datasheet	MT8926 Datasheet

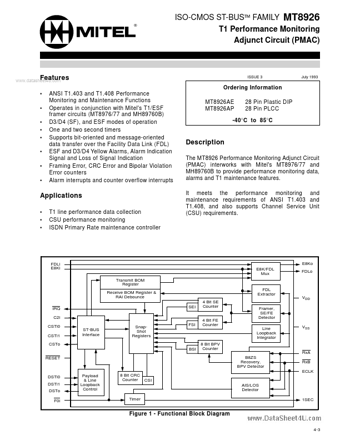

Additional preview pages of the MT8926 datasheet.

Product details

Description

The MT8926 Performance Monitoring Adjunct Circuit (PMAC) interworks with Mitel's MT8976/77 and MH89760B to provide performance monitoring data, alarms and T1 maintenance

Features

ANSI T1.403 and T1.408 Performance Monitoring and Maintenance Functions Operates in conjunction with Mitel's T1/ESF framer circuits (MT8976/77 and MH89760B) D3/D4 (SF), and ESF modes of operation One and two second timers Supports bit-oriented and message-oriented data transfer over the Facility Data Link (FDL) ESF and D3/D4 Yellow Alarms, Alarm Indication Signal and Loss of Signal Indication Framing Error, CRC Error.
