VP5311B

NTSC/PAL Digital Video Encoder

Mitel Networks Corporation

VP5311B Features

* 3 s Converts Y, Cr, Cb data to analog composite video and 4 www.DataSheet4U.com S-video 5 s Supports CCIR recommendations 601 and 656 6 s All digital video encoding 7 s Selectable master/slave mode for sync signals 8 s Switchable chrominance bandwidth 9 s Switchable pedestal with gain compensation 1

VP5311B General Description

Pin Name PD0-7 D0-7 PXCK CLAMP Pin No. 39 - 46 3 - 10 15 17 Description 8 Bit Pixel Data inputs clocked by PXCK. PD0 is the least significant bit, corresponding to Pin 46. These pins are internally pulled low. 8 Bit General Purpose Port input/output. D0 is the least significant bit, corresponding t.

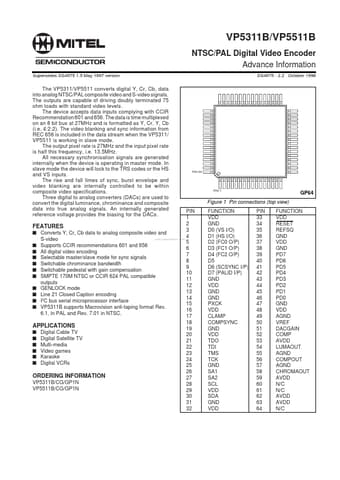

VP5311B Datasheet (236.12 KB)

VP5311B Datasheet Preview — Preview of VP5311B PDF

Datasheet Details

Part number:

VP5311B

Manufacturer:

Mitel Networks Corporation

File Size:

236.12 KB

Description:

Ntsc/pal digital video encoder.
