VP5313 Datasheet, Encoder, Mitel Networks Corporation

VP5313 Features

  • Encoder 9 s Converts Y, Cr, Cb data to analog RGB and composite 10 or S-video and composite video 11 s Supports CCIR recommendations 601 and 656 12 s All digital video encoding 13 s Selectable

PDF File Details

Part number:

VP5313

Manufacturer:

Mitel Networks Corporation

File Size:

151.79kb

Download:

📄 Datasheet

Description:

Ntsc/pal digital video encoder. Pin Name PD0-7 PXCK SA SCL SDA FC0-2 REFSQ SCSYNC PALID COMPSYNC CLAMP Pin No. 2-4, 38-42 44 18 23 24 12-14 9 8 7 6 5 Description 8

Datasheet Preview: VP5313 📥 Download PDF (151.79kb)

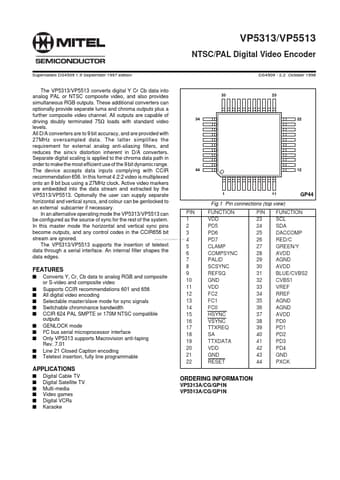

Page 2 of VP5313 Page 3 of VP5313

VP5313 Application

  • Applications s s s s s s Digital Cable TV Digital Satellite TV Multi-media Video games Digital VCRs Karaoke ORDERING INFORMATION VP5313A/CG/GP1N VP
