VP5513 - NTSC/PAL Digital Video Encoder

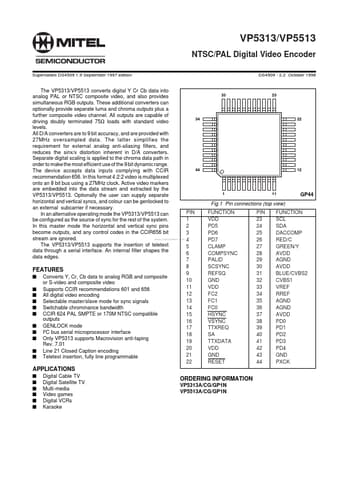

VP5313/VP5513 NTSC/PAL Digital Video Encoder Supersedes DS4509 1.9 September 1997 edition DS4509 - 2.2 October 1998 The VP5313/VP5513 converts digital Y Cr Cb data into analog PAL or NTSC composite video, and also provides 33 23 simultaneous RGB outputs.

These additional converters can optionally provide separate luma and chroma outputs plus a further composite video channel.

All outputs are capable of driving doubly terminated 75Ω loads with standard video 34 22 levels.

All D/A conve
