VP531E

NTSC/PAL Digital Video Encoder

Mitel Networks Corporation

VP531E Features

* 6 s Converts Y, Cr, Cb data to analog composite video and 7 S-video 8 s Supports CCIR recommendations 601 and 656 9 s All digital video encoding 10 s Selectable master/slave mode for sync signals 11 s Switchable chrominance bandwidth 12 s Switchable pedestal with gain compensation 13 s SMPTE 170M NT

VP531E General Description

Pin Name PD0-7 D0-7 PXCK CLAMP Pin No. 39 - 46 3 - 10 15 17 Description 8 Bit Pixel Data inputs clocked by PXCK. PD0 is the least significant bit, corresponding to Pin 46. These pins are internally pulled low. 8 Bit General Purpose Port input/output. D0 is the least significant bit, corresponding t.

VP531E Datasheet (166.98 KB)

VP531E Datasheet Preview — Preview of VP531E PDF

Datasheet Details

Part number:

VP531E

Manufacturer:

Mitel Networks Corporation

File Size:

166.98 KB

Description:

Ntsc/pal digital video encoder.

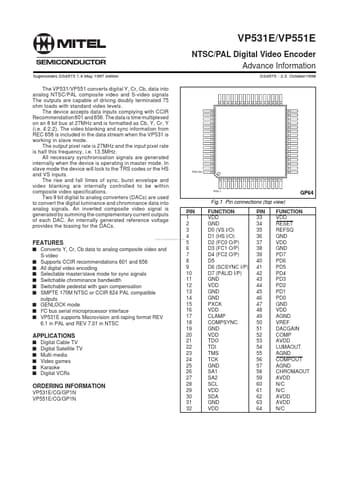

VP531E/VP551E NTSC/PAL Digital Video Encoder Advance Information Supersedes DS4573 1.4 May 1997 edition DS4573 - 2.3 October1998 PIN 1 2 3 4 www.Data.
