VP5511B NTSC/PAL Digital Video Encoder

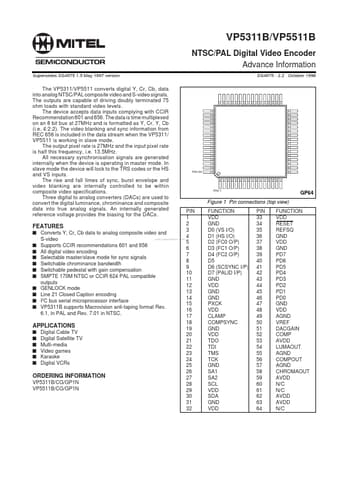

VP5311B/VP5511B Supersedes DS4575 1.5 May 1997 version NTSC/PAL Digital Video Encoder Advance Information DS4575 - 2.2 October 1998 The VP5311/VP5511 converts digital Y, Cr, Cb, data into analog NTSC/PAL composite video and S-video signals. The outputs are capable of driving doubly terminated 75 ohm loads with standard video levels. The device accepts data inputs complying with CCIR Recommendation 601 and 656. The data is time multiplexed on an 8 bit bus at 27MHz and is formatted as Y, .
