FS20KM-6 Nch POWER MOSFET

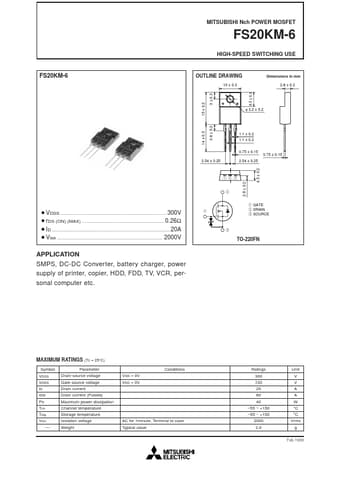

FS20KM-6 MITSUBISHI Nch POWER MOSFET FS20KM-6 HIGH-SPEED SWITCHING USE OUTLINE DRAWING 10 ± 0.3 Dimensions in mm 2.8 ± 0.2 6.5 ± 0.3 15 ± 0.3 3 ± 0.3 φ 3.2 ± 0.2 14 ± 0.5 3.6 ± 0.3 ¡VDSS 300V ¡rDS (ON) (MAX) 0.26Ω ¡ID 20A ¡Viso 2000V APPLICATION SMPS, DC-DC Converter, battery charger, power supply of printer, copier, HDD, FDD, TV, VCR, personal computer etc. 2.54 ± 0.25 1.1 ± 0.2 1.1 ± 0.2 0.75 ± 0.15 2.54 ± 0.25 0.75 ± 0.15 2.6 ± 0.2 4.5 ± 0.2 123 w q GATE q w DRAIN e SOURCE .
