M2S28D20ATP-10, M2S, 128M Double Data Rate Synchronous DRAM

DDR SDRAM (Rev.0.1) Jun,'00 Preliminary MITSUBISHI LSIs M2S28D20/ 30/ 40ATP 128M Double Data Rate Synchronous DRAM PRELIMINARY Some of contents are.
M2S28D20ATP is a 4-bank x 8388608-word x 4-bit, M2S28D30ATP is a 4-bank x 4194304-word x 8-bit, M2S28D40ATP is a 4-bank x 2097152-word x 16-bit, doubl.

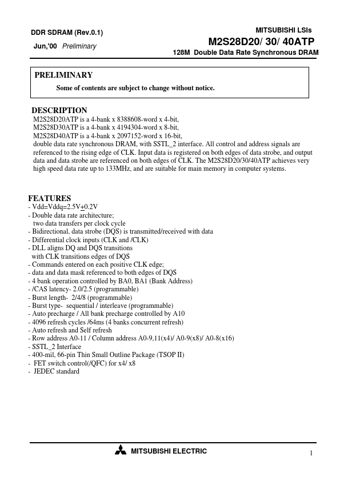

datasheet Preview Page 1 from Datasheet4u.com

M2S-28D.pdf

M2S28D20ATP-10 Datasheet Preview — This datasheet PDF includes multiple part numbers: M2S28D20ATP-10, M2S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M2S28D20ATP-10, M2S

Manufacturer:

Mitsubishi

File Size:

1.19 MB

Description:

128M Double Data Rate Synchronous DRAM

Note:

This datasheet PDF includes multiple part numbers: M2S28D20ATP-10, M2S.
Please refer to the document for exact specifications by model.

Features

* - Vdd=Vddq=2.5V+0.2V - Double data rate architecture; two data transfers per clock cycle - Bidirectional, data strobe (DQS) is transmitted/received with data - Differential clock inputs (CLK and /CLK) - DLL aligns DQ and DQS transitions with CLK transitions edges of DQS - Commands entered on each po
