M2S56D30ATP-10L Datasheet - Mitsubishi

M2S56D30ATP-10L 256M Double Data Rate Synchronous DRAM

M2S56D20ATP / AKT is a 4-bank x 16777216-word x 4-bit, M2S56D30ATP / AKT is a 4-bank x 8388608-word x 8-bit, M2S56D40ATP/ AKT is a 4-bank x 4194304-word x 16-bit, double data rate synchronous DRAM, with SSTL_2 interface. All control and address signals are referenced to the rising edge of CLK.Input .

M2S56D30ATP-10L Features

* - VDD=VDDQ=2.5V+0.2V - Double data rate architecture; two data transfers per clock cycle - Bidirectional, data strobe (DQS) is transmitted/received with data - Differential clock inputs (CLK and /CLK) - DLL aligns DQ and DQS transitions - Commands are entered on each positive CLK edge - Data and dat

M2S56D30ATP-10L Datasheet (768.53 KB)

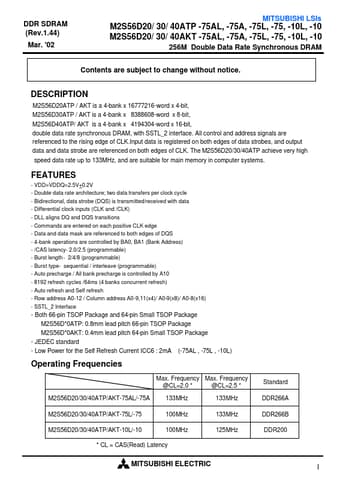

Preview of M2S56D30ATP-10L PDF
M2S56D30ATP-10L Datasheet Preview Page 2 M2S56D30ATP-10L Datasheet Preview Page 3

Datasheet Details

Part number:

M2S56D30ATP-10L

Manufacturer:

Mitsubishi

File Size:

768.53 KB

Description:

256m double data rate synchronous dram.
