MM1089 Sensor Amplifier

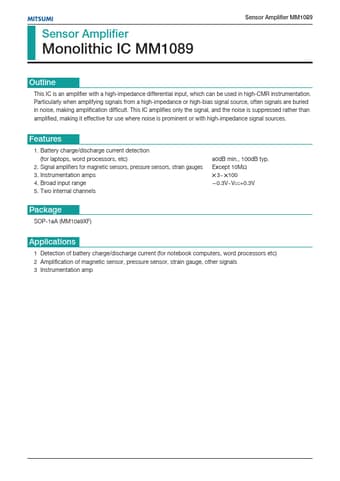

📥 Download Datasheet  Datasheet Preview Page 1

Description

MITSUMI Sensor Amplifier MM1089 Sensor Amplifier Monolithic IC MM1089 Outline This IC is an amplifier with a high-impedance differential input, whi.

📥 Download Datasheet

Preview of MM1089 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MM1089
Manufacturer
Mitsumi Electric
File Size
216.32 KB
Datasheet
MM1089_MitsumiElectric.pdf
Description
Sensor Amplifier

Features

* 1. Battery charge/discharge current detection (for laptops, word processors, etc) 2. Signal amplifiers for magnetic sensors, pressure sensors, strain gauges 3. Instrumentation amps 4. Broad input range 5. Two internal channels 80dB min. , 100dB typ. Except 10MΩ 3~ 100 -0.3V~VCC+0.3V Package SOP-18A

Applications

* 1 Detection of battery charge/discharge current (for notebook computers, word processors etc) 2 Amplification of magnetic sensor, pressure sensor, strain gauge, other signals 3 Instrumentation amp MITSUMI Sensor Amplifier MM1089 Pin Assignment Input range switching 1 +IN1 + Rg1 -IN1 Rs1 OUT1 O. CO
