BUT11AF - High Voltage NPN Power Transistor

BUT11AF Description

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by BUT11AF/D Full Pak High Voltage NPN Power Transistor For Isolated Package Applications.

BUT11AF Applications

* The BUT11AF was designed for use in line operated switching power supplies in a wide range of end use applications. This device combines the latest state of the art bipolar fabrication techniques to provide excellent switching, high voltage capability and low saturation voltage.

📥 Download Datasheet

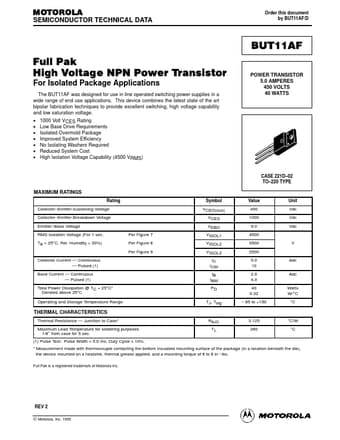

Preview of BUT11AF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BUT11AF
Manufacturer
Motorola Inc
File Size
120.07 KB
Datasheet
BUT11AF_MotorolaInc.pdf
Description
High Voltage NPN Power Transistor
