SN54LS11 - TRIPLE 3-INPUT AND GATE

Motorola Inc

Datasheet Details

Part number	SN54LS11
Manufacturer	Motorola Inc
File Size	45.25 KB
Description	TRIPLE 3-INPUT AND GATE
Datasheet	SN54LS11 Datasheet
Additional preview pages of the SN54LS11 datasheet.

📁 Similar Datasheet

SN54LS11 - TRIPLE 3-INPUT POSITIVE-AND GATES (Texas Instruments)
SN54LS112A - Dual J-K Negative-Edge-Triggered Flip-Flops (Texas Instruments)
SN54LS10 - TRIPLE 3-INPUT POSITIVE-NAND GATES (Texas Instruments)
SN54LS107A - DUAL J-K FLIP-FLOPS (Texas Instruments)
SN54LS109A - Dual J-K Positive-Edge-Triggered Flip-Flops (Texas Instruments)
SN54LS12 - POSITIVE-NAND GATE (Texas Instruments)
SN54LS122 - RETRIGGERABLE MONOSTABLE MULTIVIBRATORS (Texas Instruments)
SN54LS123 - RETRIGGERABLE MONOSTABLE MULTIVIBRATORS (Texas Instruments)
SN54LS124 - Dual Voltage Controller Oscillators (Motorola Semiconductor)
SN54LS125A - QUADRUPLE BUS BUFFERS (Texas Instruments)

Other Datasheets by Motorola Inc

SN54LS112A - DUAL JK NEGATIVE EDGE-TRIGGERED FLIP-FLOP
SN54LS113A - DUAL JK NEGATIVE EDGE-TRIGGERED FLIP-FLOP
SN54LS114A - DUAL JK NEGATIVE EDGE-TRIGGERED FLIP-FLOP
SN54LS10 - TRIPLE 3-INPUT NAND GATE
SN54LS107A - DUAL JK NEGATIVE EDGE-TRIGGERED FLIP-FLOP
SN54LS109A - DUAL JK POSITIVE EDGE-TRIGGERED FLIP-FLOP
SN54LS12 - TRIPLE 3-INPUT NAND GATE
SN54LS122 - RETRIGGERABLE MONOSTABLE MULTIVIBRATORS

Full PDF Text Transcription

Click to expand full text

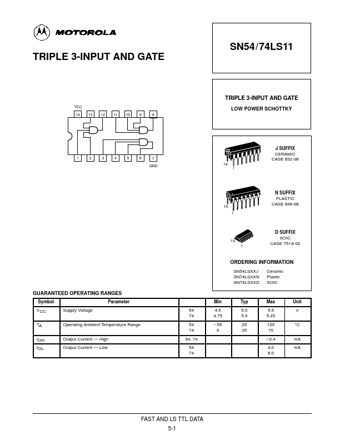

SN54/74LS11 TRIPLE 3-INPUT AND GATE TRIPLE 3-INPUT AND GATE VCC 14 13 12 11 10 9 8 LOW POWER SCHOTTKY 1 2 3 4 5 6 7 GND 14 1 J SUFFIX CERAMIC CASE 632-08 14 1 N SUFFIX PLASTIC CASE 646-06 14 1 D SUFFIX SOIC CASE 751A-02 ORDERING INFORMATION SN54LSXXJ SN74LSXXN SN74LSXXD Ceramic Plastic SOIC GUARANTEED OPERATING RANGES Symbol VCC TA IOH IOL Supply Voltage Operating Ambient Temperature Range Output Current — High Output Current — Low Parameter 54 74 54 74 54, 74 54 74 Min 4.5 4.75 – 55 0 Typ 5.0 5.0 25 25 Max 5.5 5.25 125 70 – 0.4 4.0 8.
