SN54LS113A Datasheet - Motorola Inc

SN54LS113A DUAL JK NEGATIVE EDGE-TRIGGERED FLIP-FLOP

SN54/74LS113A DUAL JK NEGATIVE EDGE-TRIGGERED FLIP-FLOP The SN54 / 74LS113A offers individual J, K, set, and clock inputs. These monolithic dual flip-flops are designed so that when the clock goes HIGH, the inputs are enabled and data will be accepted. The logic level of the J and K inputs may be allowed to change when the clock pulse is HIGH and the bistable will perform according to the truth table as long as minimum setup times are observed. Input data is transferred to the outputs on the neg.

SN54LS113A_MotorolaInc.pdf

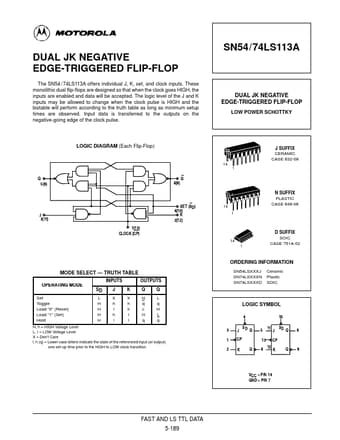

Preview of SN54LS113A PDF
SN54LS113A Datasheet Preview Page 2 SN54LS113A Datasheet Preview Page 3

Datasheet Details

Part number:

SN54LS113A

Manufacturer:

Motorola Inc

File Size:

140.23 KB

Description:

Dual jk negative edge-triggered flip-flop.
