MPQ2222, MPQ2222A Datasheet - Motorola Semiconductor

MPQ2222 Quad Transistors

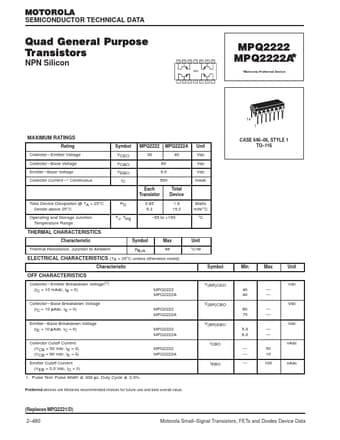

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Quad General Purpose Transistors NPN Silicon 14 13 12 11 10 9 8 NPN 1234567 MPQ2222 MPQ2222A Motorola Preferred Device MAXIMUM RATINGS Rating Symbol MPQ2222 MPQ2222A Unit Collector Emitter Voltage Collector Base Voltage Emitter Base Voltage Collector Current Continuous VCEO VCBO VEBO IC 30 40 60 5.0 500 Each Transistor Total Device Vdc Vdc Vdc mAdc Total Device Dissipation @ TA = 25°C PD 0.65.

MPQ2222A_MotorolaSemiconductor.pdf

This datasheet PDF includes multiple part numbers: MPQ2222, MPQ2222A. Please refer to the document for exact specifications by model.
MPQ2222 Datasheet Preview Page 2 MPQ2222 Datasheet Preview Page 3

Datasheet Details

Part number:

MPQ2222, MPQ2222A

Manufacturer:

Motorola Semiconductor

File Size:

105.84 KB

Description:

Quad transistors.

Note:

This datasheet PDF includes multiple part numbers: MPQ2222, MPQ2222A.
Please refer to the document for exact specifications by model.
