MPQ2241 - Configurable-Frequency Synchronous Buck Converter

Datasheet Summary

Description

The MPQ2241 is a configurable-frequency (300kHz to 2.2MHz), synchronous, step-down converter.

It can achieve up to 1A of continuous output current (IOUT) with peak current control for excellent transient response and efficiency.

Features

  • including soft start (SS), enable (EN) control, and power good (PG) indication. In addition, the MPQ2241 provides over-current protection (OCP) with valley current detection to avoid current runaway, short-circuit protection (SCP), reliable over-voltage protection (OVP), and autorecovery thermal protection. With internal compensation, the MPQ2241 requires a minimal number of readily available, standard external components. It is available in a QFN-9 (2mmx3mm) package, and is AECQ100 qualified.

📥 Download Datasheet

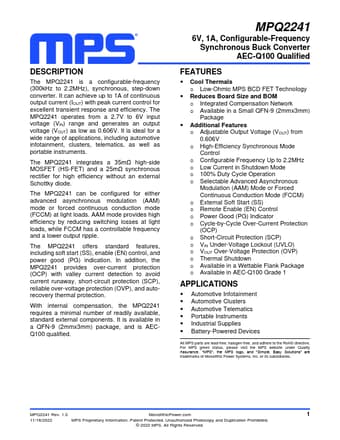

Datasheet preview – MPQ2241
