MPQ2242 - Synchronous Buck Converter

Datasheet Summary

Description

The MPQ2242 is a configurable-frequency (300kHz to 2.2MHz), synchronous, step-down converter.

It can achieve up to 2A of continuous output current (IOUT) with peak current control for excellent transient response and efficiency performance.

Features

  • including soft start (SS), enable (EN) control, and a power good (PG) indicator. In addition, the MPQ2242 provides over-current protection (OCP) with valley current detection to avoid current runaway, short-circuit protection (SCP), reliable over-voltage protection (OVP), and autorecovery thermal protection. With internal compensation, the MPQ2242 requires a minimal number of readily available, standard external components. It is available in a QFN-9 (2mmx3mm) package, and is AECQ100 qualified.

📥 Download Datasheet

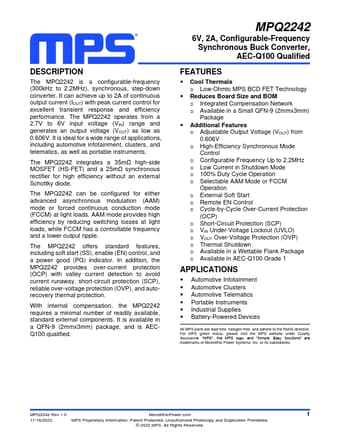

Datasheet preview – MPQ2242

Datasheet Details

Part number MPQ2242
Manufacturer MPS
File Size 1.18 MB
Description Synchronous Buck Converter
Datasheet download datasheet MPQ2242 Datasheet
Additional preview pages of the MPQ2242 datasheet.

📁 Similar Datasheet

  • MPQ2221 - NPN Transistor (Motorola)
  • MPQ2222 - QUAD TRANSISTORS (Central)
  • MPQ2222 - Quad Transistors (Motorola Semiconductor)
  • MPQ2222A - Quad Transistors (Motorola Semiconductor)
  • MPQ2222A - QUAD TRANSISTORS (Central Semiconductor)
  • MPQ2369 - NPN Silicon Quad Transistor (Central Semiconductor)
  • MPQ2369 - QUAD SWITCHING TRANSISTOR (Motorola)
  • MPQ2483 - QUAD AMPLIFIER TRANSISTOR (Motorola)
  • MPQ2484 - QUAD AMPLIFIER TRANSISTOR (Motorola)
  • MPQ2906 - PNP SILICON QUAD TRANSISTOR (Central Semiconductor)
Other Datasheets by MPS
  • MPQ2241 - Configurable-Frequency Synchronous Buck Converter
  • MPQ2246 - Configurable-Frequency Synchronous Buck Converter
  • MPQ2286 - Programmable High Frequency Synchronous Buck Regulator
  • MPQ20051 - 1A Linear Regulator
  • MPQ20051DQ - 1A Linear Regulator
  • MPQ20051DQ-AEC1 - 1A Linear Regulator
  • MPQ20056 - 250mA Linear Regulator
  • MPQ20073 - DDR Memory Termination Regulator

Full PDF Text Transcription

Click to expand full text
DESCRIPTION The MPQ2242 is a configurable-frequency (300kHz to 2.2MHz), synchronous, step-down converter. It can achieve up to 2A of continuous output current (IOUT) with peak current control for excellent transient response and efficiency performance. The MPQ2242 operates from a 2.7V to 6V input voltage (VIN) range and generates an output voltage (VOUT) as low as 0.606V. It is ideal for a wide range of applications, including automotive infotainment, clusters, and telematics, as well as portable instruments. The MPQ2242 integrates a 35mΩ high-side MOSFET (HS-FET) and a 25mΩ synchronous rectifier for high efficiency without an external Schottky diode.
