2N2951 Datasheet - Motorola

2N2951 NPN Transistor

2N2951 (SILICON) 2N2952 CASE 31 (TO 5) 2N2951 CME~ (TO l8) 2N2952 Collector connected to case NPN silicon annular Star transistors for power amplifier applications to 100 MHz. MAXIMUM RATINGS. Rating Collector-Base Voltage Collector- Emitter Voltage Emitter- Base Voltage Collector Current (continuous) Base Current (continuous) Total Device Dissipation (25°C Case Temperature) (Derate above 25"C) Symbol VCB VCES VEB IC IB PD Value 60 60 5.0 250 50 2N2951 3.0 20 2N2952 1.8 12 .

2N2951 Datasheet (146.36 KB)

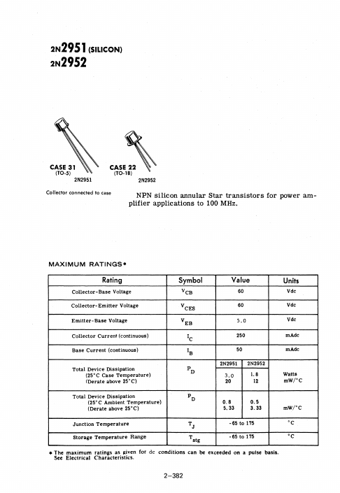

Preview of 2N2951 PDF
2N2951 Datasheet Preview Page 2 2N2951 Datasheet Preview Page 3

Datasheet Details

Part number:

2N2951

Manufacturer:

Motorola

File Size:

146.36 KB

Description:

Npn transistor.
