2N2904AL Datasheet - Microsemi Corporation

2N2904AL PNP SWITCHING SILICON TRANSISTOR

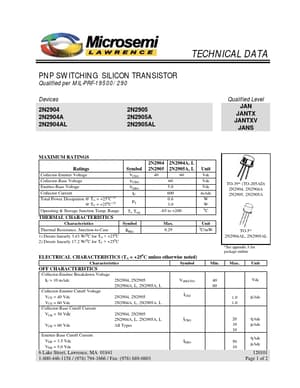

TECHNICAL DATA PNP SWITCHING SILICON TRANSISTOR Qualified per MIL-PRF-19500/290 Devices 2N2904 2N2904A 2N2904AL 2N2905 2N2905A 2N2905AL Qualified Level JAN JANTX JANTXV JANS MAXIMUM RATINGS Ratings Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Total Power Dissipation @ TA = +250C (1) @ TC = +250C (2) Operating & Storage Junction Temp. Range Symbol VCEO VCBO VEBO IC PT TJ, Tstg 2N2904 2N2904A, L 2N2905 2N2905A, L 40 60 60 5.0 600 0.6 3.0 -65 to +200 Ma.

2N2904AL_MicrosemiCorporation.pdf

Preview of 2N2904AL PDF
2N2904AL Datasheet Preview Page 2 2N2904AL Datasheet Preview Page 3

Datasheet Details

Part number:

2N2904AL

Manufacturer:

Microsemi ↗ Corporation

File Size:

62.58 KB

Description:

Pnp switching silicon transistor.
