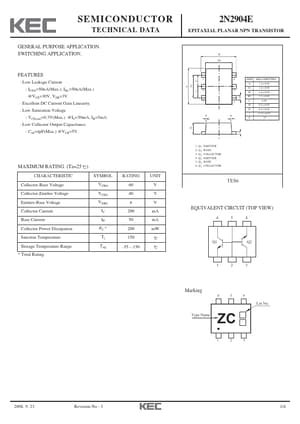

Part number: 2N2904E
Manufacturer: KEC
File Size: 49.46KB
Download: 📄 Datasheet
Description: EPITAXIAL PLANAR NPN TRANSISTOR
Low Leakage Current : ICEX=50nA(Max.), IBL=50nA(Max.) @VCE=30V, VEB=3V. Excellent DC Current Gain Linearity. Low Saturation Voltage : VCE(sat)=0.3V(Max.) @IC=50mA, IB=5mA.
Image gallery
