2N2906U - EPITAXIAL PLANAR PNP TRANSISTOR

2N2906U Description

SEMICONDUCTOR TECHNICAL DATA GENERAL PURPOSE APPLICATION.SWITCHING APPLICATION.2N2906U EPITAXIAL PLANAR PNP TRANSISTOR .

2N2906U Features

* Low Leakage Current : ICEX=-50nA(Max. ), IBL=-50nA(Max. ) @VCE=-30V, VEB=-3V. Excellent DC Current Gain Linearity. Low Saturation Voltage : VCE(sat)=-0.4V(Max. ) @IC=-50mA, IB=-5mA. Low Collector Output Capacitance : Cob=4.5pF(Max. ) @VCB=5V. MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL Collector-B

📥 Download Datasheet

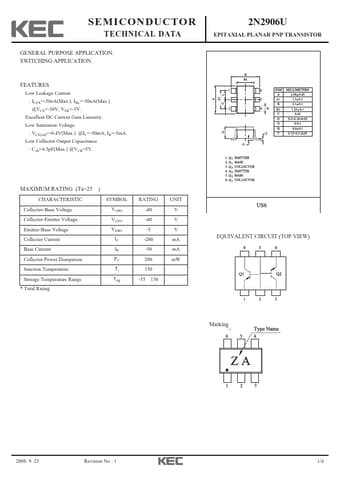

Preview of 2N2906U PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2N2906U
Manufacturer
KEC
File Size
774.95 KB
Datasheet
2N2906U-KEC.pdf
Description
EPITAXIAL PLANAR PNP TRANSISTOR
