2N2904A - Bipolar PNP Device

📥 Download Datasheet

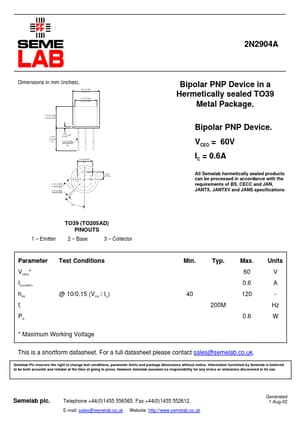

Datasheet preview – 2N2904A

Datasheet Details

Part number 2N2904A
Manufacturer Seme LAB
File Size 11.13 KB
Description Bipolar PNP Device
Datasheet download datasheet 2N2904A Datasheet
Additional preview pages of the 2N2904A datasheet.

📁 Similar Datasheet

  • 2N2904A - PNP SWITCHING SILICON TRANSISTOR (Microsemi Corporation)
  • 2N2904A - Radiation Hardened PNP Transistors (VPT)
  • 2N2904A - Small Signal General Purpose Transistor (TAITRON)
  • 2N2904A - PNP Silicon Annular Hermetic Transistors (Motorola)
  • 2N2904A - PNP SILICON TRANSISTORS (Central Semiconductor)
  • 2N2904AL - PNP SWITCHING SILICON TRANSISTOR (Microsemi Corporation)
  • 2N2904AL - Radiation Hardened PNP Transistors (VPT)
  • 2N2904 - PNP SWITCHING SILICON TRANSISTOR (Microsemi Corporation)
  • 2N2904 - Silicon PNP Transistor (NTE)
  • 2N2904 - PNP SILICON TRANSISTORS (Central Semiconductor)
Other Datasheets by Seme LAB

Full PDF Text Transcription

Click to expand full text
2N2904A Dimensions in mm (inches). 8.51 (0.34) 9.40 (0.37) 7.75 (0.305) 8.51 (0.335) Bipolar PNP Device in a Hermetically sealed TO39 Metal Package. Bipolar PNP Device. 6.10 (0.240) 6.60 (0.260) 12.70 (0.500) min. 0.89 max. (0.035) 0.41 (0.016) 0.53 (0.021) dia. VCEO = 60V 5.08 (0.200) typ. IC = 0.6A 2.54 (0.100) 2 1 0.74 (0.029) 1.14 (0.045) 0.71 (0.028) 0.86 (0.034) 3 All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications 45° TO39 (TO205AD) PINOUTS 1 – Emitter 2 – Base 3 – Collector Parameter VCEO* IC(CONT) hFE ft PD Test Conditions Min. Typ. Max. 60 0.6 Units V A Hz @ 10/0.15 (VCE / IC) 40 200M 120 0.6 W * Maximum Working Voltage This is a shortform datasheet.
