2N3553 Datasheet - Motorola

2N3553 HIGH FREQUENCY TRANSISTOR

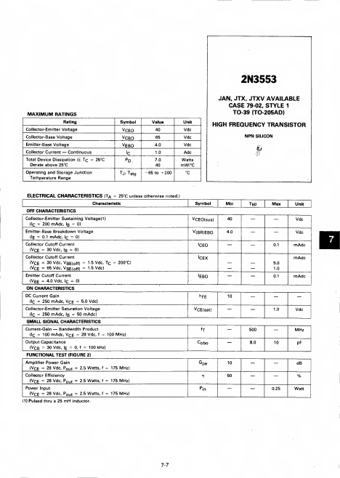

2N3553 MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Continuous @Total Device Dissipation Tc = 25°C Derate above 25°C Operating and Storage Junction Temperature Range Symbol vCEO vCBO v EBO c p D. TJ< Tstg Value 40 65 4.0 1.0 7.0 40 -65 to +200 Unit Vdc Vdc Vdc Adc Watts mwrc °c JAN, JTX, JTXV AVAILABLE CASE 79-02, STYLE 1 TO-39 (TO-205AD) HIGH FREQUENCY TRANSISTOR NPN SILICON ELECTRICAL CHARACTERISTICS (TA .

2N3553-Motorola.pdf

Preview of 2N3553 PDF
2N3553 Datasheet Preview Page 2

Datasheet Details

Part number:

2N3553

Manufacturer:

Motorola

File Size:

52.97 KB

Description:

High frequency transistor.
