2N700 - PNP Transistor

2N700 Description

2N700,A (GERMANIUM) CASE 21 (TO-17) PNP germanium mesa transistors for oscillator, frequency multiplier, wide- band mixer and wide-band amplifier ap.

2N700 Applications

* MAXIMUM RATINGS Rating Collector-Base Voltage Collector-Emitter Voltage 2N700 2N700A Emitter-Base Voltage Collector DC Current Junction Temperature Storage Temperature Total Device Dissipation at 250 C Ambient Derate above 250 C Symbol VCB VCEO VEB Ie TJ Tstg PD Value 25 20 25 0.2 50 100 -65 to

📥 Download Datasheet

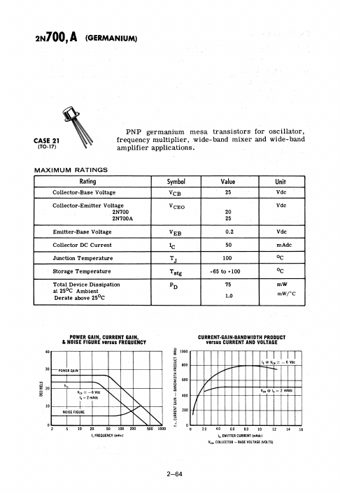

Preview of 2N700 PDF
