54HC32A Datasheet - Motorola

54HC32A Quad 2-Input OR Gate

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Quad 2-Input OR Gate High Performance Silicon Gate CMOS The MC54/74HC32A is identical in pinout to the LS32. The device inputs are compatible with Standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs. Output Drive Capability: 10 LSTTL Loads Outputs Directly Interface to CMOS, NMOS and TTL Operating Voltage Range: 2 to 6V Low Input Current: 1µA High Noise Immuni.

54HC32A Datasheet (159.68 KB)

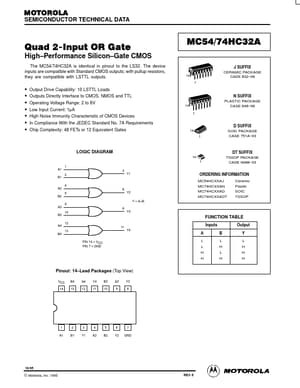

Preview of 54HC32A PDF
54HC32A Datasheet Preview Page 2 54HC32A Datasheet Preview Page 3

Datasheet Details

Part number:

54HC32A

Manufacturer:

Motorola

File Size:

159.68 KB

Description:

Quad 2-input or gate.
