54HC353, 54HC352 Datasheet - STMicroelectronics

54HC353 DUAL 4-CHANNEL MULTIPLEXER

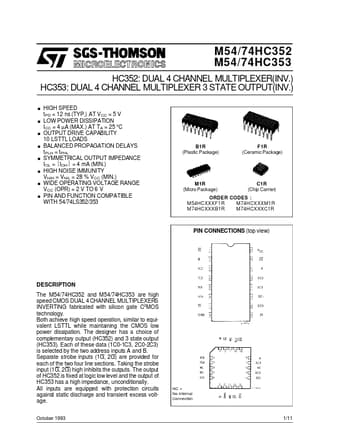

The M54/74HC352 and M54/74HC353 are high speed CMOS DUAL 4 CHANNEL MULTIPLEXERS INVERTING fabricated with silicon gate C2MOS technology. Both achieve high speed operation, similar to equivalent LSTTL while maintaining the CMOS low power dissipation. The designer has a choice of complementary output .
M54/74HC352 M54/74HC353 HC352: DUAL 4 CHANNEL MULTIPLEXER(INV.) HC353: DUAL 4 CHANNEL MULTIPLEXER 3 STATE OUTPUT(INV.) . HIGH SPEED tPD = 12 ns (TYP.) AT VCC = 5 V . LOW POWER DISSIPATION ICC = 4 µA (MAX.) AT TA = 25 °C . OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS . BALANCED PROPAGATION DELAYS tPLH = tPHL . SYMMETRICAL OUTPUT IMPEDANCE IOL = IOH = 4 mA (MIN.) . HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) . WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2 V TO 6 V . PIN AND FUNCTION COMPATIBLE WI.

54HC352-STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: 54HC353, 54HC352. Please refer to the document for exact specifications by model.
54HC353 Datasheet Preview Page 2 54HC353 Datasheet Preview Page 3

Datasheet Details

Part number:

54HC353, 54HC352

Manufacturer:

STMicroelectronics ↗

File Size:

256.34 KB

Description:

Dual 4-channel multiplexer.

Note:

This datasheet PDF includes multiple part numbers: 54HC353, 54HC352.
Please refer to the document for exact specifications by model.
