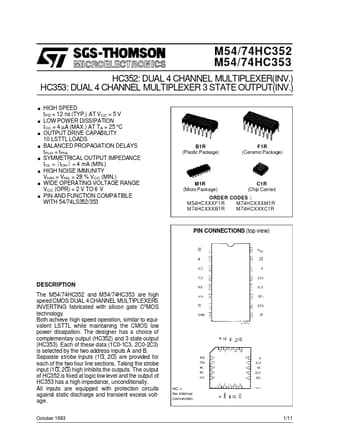

54HC352 DUAL 4-CHANNEL MULTIPLEXER

The M54/74HC352 and M54/74HC353 are high speed CMOS DUAL 4 CHANNEL MULTIPLEXERS INVERTING fabricated with silicon gate C2MOS technology. Both achieve high speed operation, similar to equivalent LSTTL while maintaining the CMOS low power dissipation. The designer has a choice of complementary output .

M54/74HC352 M54/74HC353 HC352: DUAL 4 CHANNEL MULTIPLEXER(INV.) HC353: DUAL 4 CHANNEL MULTIPLEXER 3 STATE OUTPUT(INV.) . HIGH SPEED tPD = 12 ns (TYP.) AT VCC = 5 V . LOW POWER DISSIPATION ICC = 4 µA (MAX.) AT TA = 25 °C . OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS . BALANCED PROPAGATION DELAYS tPLH = tPHL . SYMMETRICAL OUTPUT IMPEDANCE IOL = IOH = 4 mA (MIN.) . HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) . WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2 V TO 6 V . PIN AND FUNCTION COMPATIBLE WI.
