54HC366 - Three-State Non-Inverting/Inverting

Product Overview

Texas Instruments

📥 Download Datasheet

54HC366 Three-State Non-Inverting/Inverting by Texas Instruments - Datasheet Preview — Datasheet preview – 54HC366

Datasheet Details

Part number	54HC366
Manufacturer	Texas Instruments
File Size	529.04 KB
Description	Three-State Non-Inverting/Inverting
Datasheet	54HC366 Datasheet
Note	This datasheet PDF includes multiple part numbers: 54HC366, 54HC365. Please refer to the document for exact specifications by model.

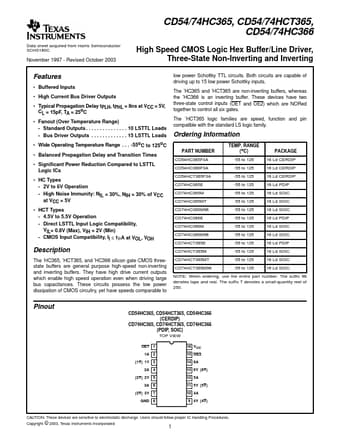

Additional preview pages of the 54HC366 datasheet.

Product details

Description

The ’HC365, ’HCT365, and ’HC366 silicon gate CMOS threestate buffers are general purpose high-speed non-inverting and inverting buffers.

Features

Buffered Inputs.
High Current Bus Driver Outputs.
Typical Propagation Delay CL = 15pF, TA = 25oC tPLH, tPHL = 8ns at VCC = 5V,.
Fanout (Over Temperature Range) - Standard Outputs.
10 LSTTL Loads - Bus Driver Outputs.
. . . 15 LSTTL Loads.
Wide Operating Temperature Range . . . -55oC to 125oC.
Balanced Propagation Delay and Transition Times.
Signiﬁcant Power Reduction Compa.
