54HC365 - Three-State Non-Inverting/Inverting

Product Overview

Texas Instruments

📥 Download Datasheet

54HC365 Three-State Non-Inverting/Inverting by Texas Instruments - Datasheet Preview — Datasheet preview – 54HC365

Datasheet Details

Part number	54HC365
Manufacturer	Texas Instruments
File Size	529.04 KB
Description	Three-State Non-Inverting/Inverting
Datasheet	54HC365 Datasheet

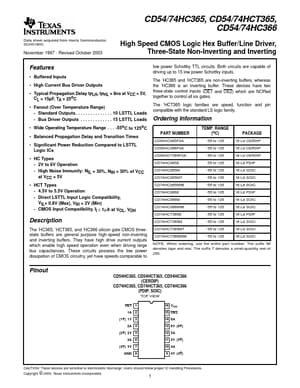

Additional preview pages of the 54HC365 datasheet.

Product details

Description

The ’HC365, ’HCT365, and ’HC366 silicon gate CMOS threestate buffers are general purpose high-speed non-inverting and inverting buffers.

Features

Buffered Inputs.
High Current Bus Driver Outputs.
Typical Propagation Delay CL = 15pF, TA = 25oC tPLH, tPHL = 8ns at VCC = 5V,.
Fanout (Over Temperature Range) - Standard Outputs.
10 LSTTL Loads - Bus Driver Outputs.
. . . 15 LSTTL Loads.
Wide Operating Temperature Range . . . -55oC to 125oC.
Balanced Propagation Delay and Transition Times.
Signiﬁcant Power Reduction Compa.
