74LS374, 74LS373 OCTAL TRANSPARENT LATCH

Motorola

Description

OCTAL TRANSPARENT LATCH WITH 3-STATE OUTPUTS; OCTAL D-TYPE FLIP-FLOP WITH 3-STATE OUTPUT The SN54 / 74LS373 consists of eight latches with 3-state ou.

📥 Download Datasheet

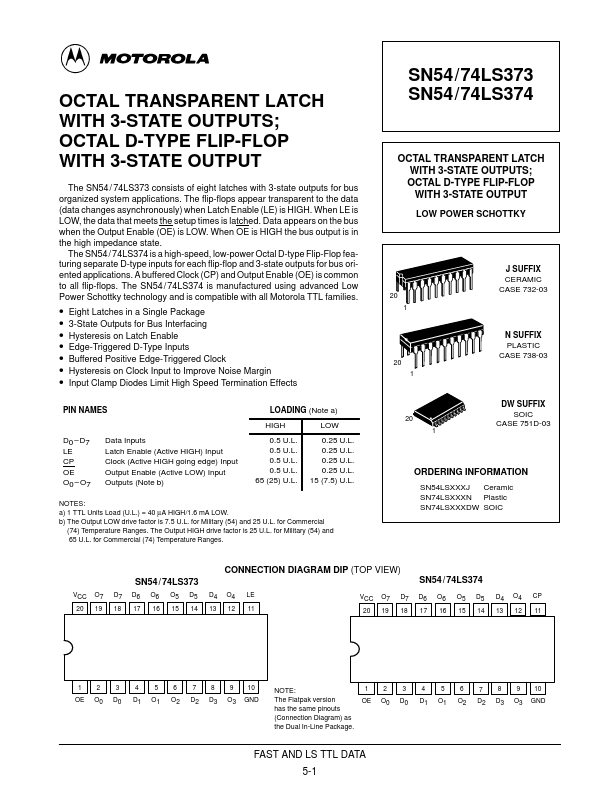

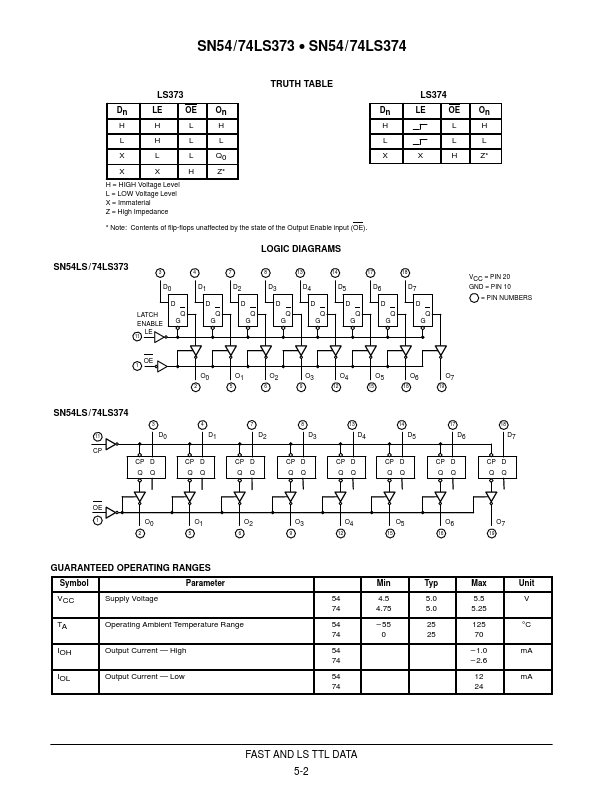

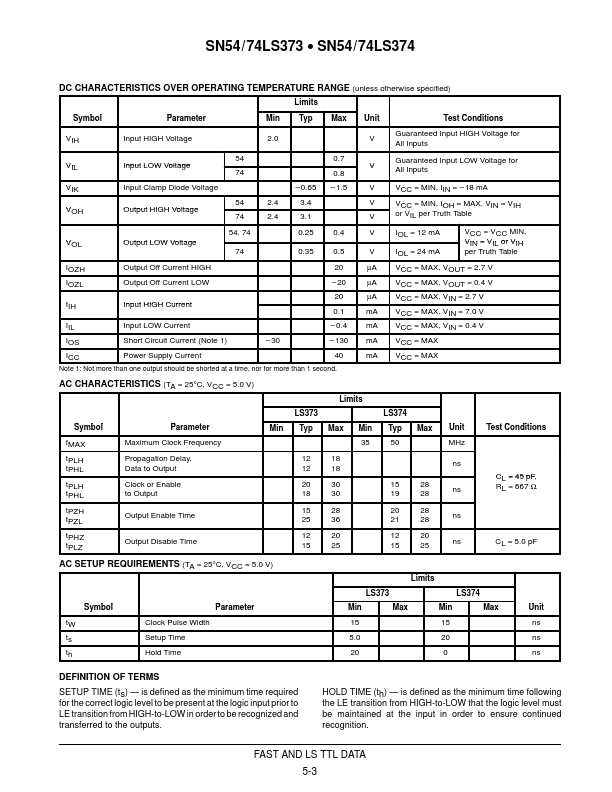

74LS374 Datasheet Preview — This datasheet PDF includes multiple part numbers: 74LS374, 74LS373. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: 74LS374, 74LS373
Manufacturer: Motorola
File Size: 93.32 KB
Datasheet: 74LS373-Motorola.pdf
Description: OCTAL TRANSPARENT LATCH
Note: This datasheet PDF includes multiple part numbers: 74LS374, 74LS373.
Please refer to the document for exact specifications by model.

Applications

* The flip-flops appear transparent to the data (data changes asynchronously) when Latch Enable (LE) is HIGH. When LE is LOW, the data that meets the setup times is latched. Data appears on the bus when the Output Enable (OE) is LOW. When OE is HIGH the bus output is in the high impedance state. The
