MC10110, MC10110L - Dual 3-Input/3-Ouput OR Gate

MC10110 Description

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Dual 3-Input/3-Ouput OR Gate The MC10110 is designed to drive up to three transmission lines simul * tane.

MC10110 Applications

* where minimum clock skew is desired. Three VCC pins are provided and each one should be used. PD = 80 mW typ/pkg (No Load) tpd = 2.4 ns typ (All Outputs Loaded) tr, tf = 2.2 ns typ (20%
* 80%) MC10110 L SUFFIX CERAMIC PACKAGE CASE 620
* 10 P SUFFIX PLASTIC PACKAGE CASE 648
* 08 L

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MC10110, MC10110L. Please refer to the document for exact specifications by model.

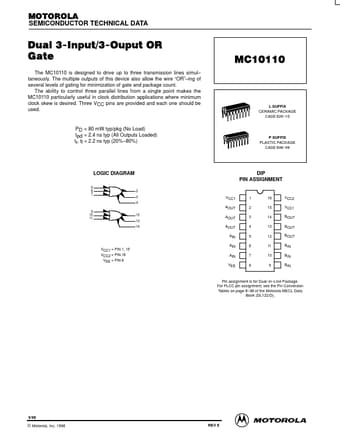

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC10110, MC10110L
Manufacturer
Motorola
File Size
76.54 KB
Datasheet
MC10110L_MotorolaInc.pdf
Description
Dual 3-Input/3-Ouput OR Gate
Note
This datasheet PDF includes multiple part numbers: MC10110, MC10110L.
Please refer to the document for exact specifications by model.
