MC10102 Quad 2-Input NOR Gate

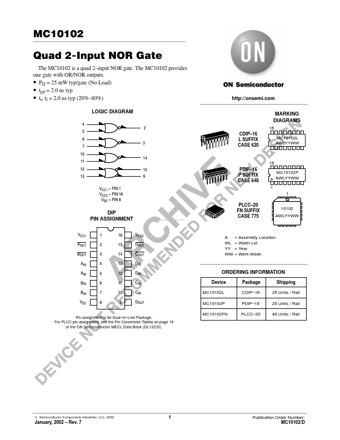

MC10102 Quad 2-Input NOR Gate The MC10102 is a quad 2 input NOR gate. The MC10102 provides one gate with OR/NOR outputs. PD = 25 mW typ/gate (No Load) tpd = 2.0 ns typ tr, tf = 2.0 ns typ (20% 80%) LOGIC DIAGRAM 4 5 6 7 10 11 12 13 VCC1 = PIN 1 VCC2 = PIN 16 VEE = PIN 8 2 3 14 16 15 9 PDIP 16 P SUFFIX CASE 648 1 1 PLCC 20 FN SUFFIX CASE 775 10102 AWLYYWW MC10102P AWLYYWW CDIP 16 L SUFFIX CASE 620 1 http://onsemi.com MARKING D.

MC10102 Features

* indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or u
