MC10111 - Dual 3-Input/3-Output NOR Gate

MC10111 Description

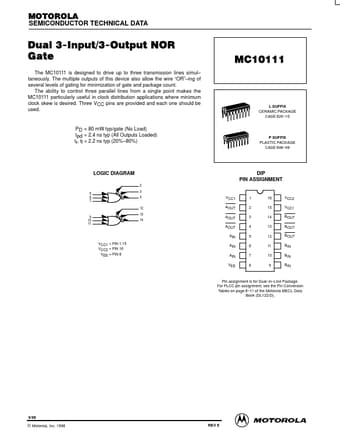

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Dual 3-Input/3-Output NOR Gate The MC10111 is designed to drive up to three transmission lines simul * .

MC10111 Applications

* where minimum clock skew is desired. Three VCC pins are provided and each one should be used. MC10111 L SUFFIX CERAMIC PACKAGE CASE 620
* 10 PD = 80 mW typ/gate (No Load) tpd = 2.4 ns typ (All Outputs Loaded) tr, tf = 2.2 ns typ (20%
* 80%) P SUFFIX PLASTIC PACKAGE CASE 648
