MC10117 - Dual 2-Wide 2-3-Input OR-AND/OR-AND Gate

MC10117 Dual 2-Wide 2-3-Input OR-AND/OR-AND Gate T h e M C 1 0 11 7 i s a d u a l 2 w i d e 2 3 i n p u t OR AND/OR AND Invert gate.

This general purpose logic element is designed for use in data control, such as digital multiplexing or data distribution.

Pin 9 is common to both gates.

PD = 100 mW typ/pkg (No Load) tpd = 2.3 ns typ tr, tf = 2.2 ns typ (20% 80%) LOGIC DIAGRAM 4 5 6 7 9 10 11 12 13 14 15 VC

MC10117 Features

* claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. PUBLICATION ORDERING INFORMATION Literature Fulfi

MC10117_ONSemiconductor.pdf

Preview of MC10117 PDF

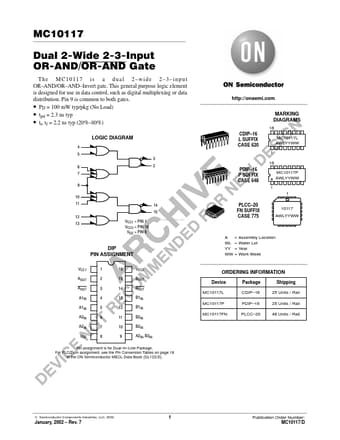

MC10117 Datasheet Preview Page 2 MC10117 Datasheet Preview Page 3
