MC10113 Quad Exclusive OR Gate

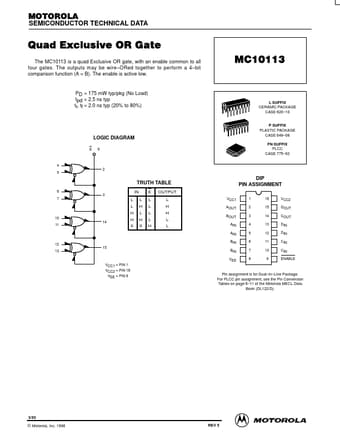

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Quad Exclusive OR Gate The MC10113 is a quad Exclusive OR gate, with an enable common to all four gates. The outputs may be wire ORed together to perform a 4 bit comparison function (A = B). The enable is active low. MC10113 PD = 175 mW typ/pkg (No Load) tpd = 2.5 ns typ tr, tf = 2.0 ns typ (20% to 80%) L SUFFIX CERAMIC PACKAGE CASE 620 10 P SUFFIX PLASTIC PACKAGE CASE 648 08 FN SUFFIX PLCC CASE 775 02 LOGIC DIAG.
