MC10106 Triple 4-3-3-Input NOR Gate

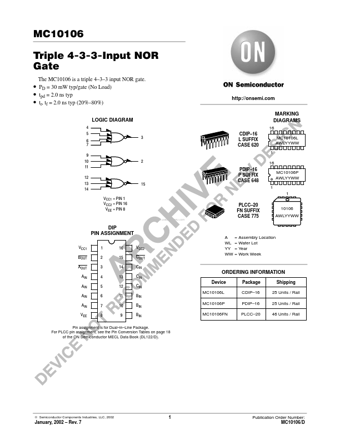

MC10106 Triple 4-3-3-Input NOR Gate The MC10106 is a triple 4 3 3 input NOR gate. PD = 30 mW typ/gate (No Load) tpd = 2.0 ns typ tr, tf = 2.0 ns typ (20% 80%) LOGIC DIAGRAM 4 5 6 7 9 10 11 12 13 14 VCC1 = PIN 1 VCC2 = PIN 16 VEE = PIN 8 www.DataSheet4U.com http://onsemi.com MARKING DIAGRAMS 16 3 CDIP 16 L SUFFIX CASE 620 1 MC10106L AWLYYWW 2 PDIP 16 P SUFFIX CASE 648 16 MC10106P AWLYYWW 1 1 PLCC 20 FN SUFFIX CASE.

MC10106 Features

* nal information, please contact your local Sales Representative. http://onsemi.com 4 MC10106/D

MC10106_ONSemiconductor.pdf

Preview of MC10106 PDF
MC10106 Datasheet Preview Page 2 MC10106 Datasheet Preview Page 3

Datasheet Details

Part number:

MC10106

Manufacturer:

ON Semiconductor ↗

File Size:

111.49 KB

Description:

Triple 4-3-3-input nor gate.
