MC10170 Datasheet - Motorola

MC10170 - 9+2-Bit Parity Generator/Checker

MOTOROLA SEMICONDUCTOR TECHNICAL DATA 9+2-Bit Parity Generator/ Checker The MC10170 is a 11 bit parity circuit, which is segmented into 9 data bits and 2 control bits.

Output A generates odd parity on 9 bits; that is, Output A goes high for an odd number of high logic levels on the bit inputs in only 2 gate delays.

The Control Inputs can be used to expand parity to larger numbers of bits with minimal delay or can be used to generate even parity.

To expand parity to larger words, the MC

MC10170_MotorolaInc.pdf

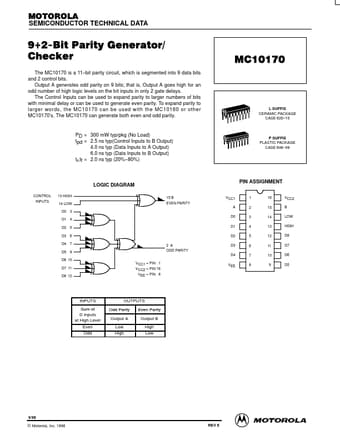

Preview of MC10170 PDF
MC10170 Datasheet Preview Page 2 MC10170 Datasheet Preview Page 3

Datasheet Details

Part number:

MC10170

Manufacturer:

Motorola

File Size:

81.39 KB

Description:

9+2-bit parity generator/checker.
