MC10174, MC10174L Datasheet - Motorola

MC10174 Dual 4 to 1 Multiplexer

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Dual 4 to 1 Multiplexer The MC10174 is a high speed dual channel multiplexer with output enable capability. The select inputs determine one of four active data inputs for each multiplexer. An output enable forces both outputs low when in the high state. PD = 305 mW typ/pkg (No Load) tpd = 3.5 ns typ (Data to output) tr, tf = 2.0 ns typ (20% 80%) D00 3 D01 5 D02 4 D03 6 LOGIC DIAGRAM 2 Q0 A7 B9 ENABLE 14 D10 13 D11 11 D12 12 D13 10 VCC1 = PIN 1.

MC10174L_MotorolaInc.pdf

This datasheet PDF includes multiple part numbers: MC10174, MC10174L. Please refer to the document for exact specifications by model.

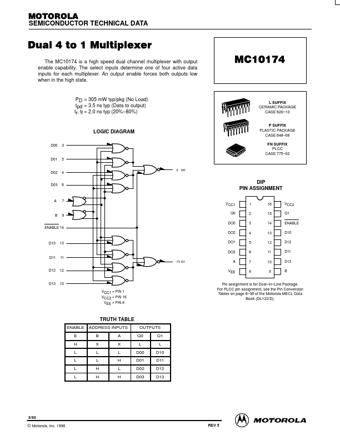

MC10174 Datasheet Preview Page 2 MC10174 Datasheet Preview Page 3

Datasheet Details

Part number:

MC10174, MC10174L

Manufacturer:

Motorola

File Size:

110.46 KB

Description:

Dual 4 to 1 multiplexer.

Note:

This datasheet PDF includes multiple part numbers: MC10174, MC10174L.
Please refer to the document for exact specifications by model.
