MC10172, MC10172L Datasheet - Motorola

MC10172 Dual Binary to 1-4 Decoder

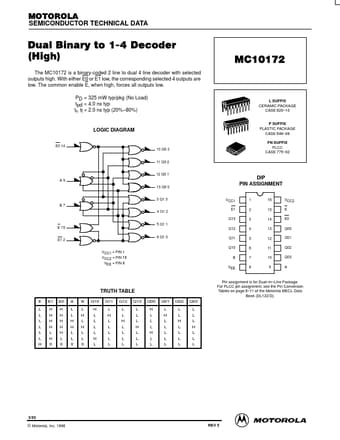

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Dual Binary to 1-4 Decoder (High) The MC10172 is a binary-coded 2 line to dual 4 line decoder with selected outputs high. With either E0 or E1 low, the corresponding selected 4 outputs are low. The common enable E, when high, forces all outputs low. PD = 325 mW typ/pkg (No Load) tpd = 4.0 ns typ tr, tf = 2.0 ns typ (20% 80%) E0 14 A9 B7 E 15 E1 2 LOGIC DIAGRAM VCC1 = PIN 1 VCC2 = PIN 16 VEE = PIN 8 10 Q0 3 11 Q0 2 12 Q0 1 13 Q0 0 3 Q1 3 4 Q1 2 5 .

MC10172L_MotorolaInc.pdf

This datasheet PDF includes multiple part numbers: MC10172, MC10172L. Please refer to the document for exact specifications by model.
MC10172 Datasheet Preview Page 2 MC10172 Datasheet Preview Page 3

Datasheet Details

Part number:

MC10172, MC10172L

Manufacturer:

Motorola

File Size:

113.61 KB

Description:

Dual binary to 1-4 decoder.

Note:

This datasheet PDF includes multiple part numbers: MC10172, MC10172L.
Please refer to the document for exact specifications by model.
