MC10H600, MC100H600 9-Bit TTL to ECL Translator

MC10H600 Description

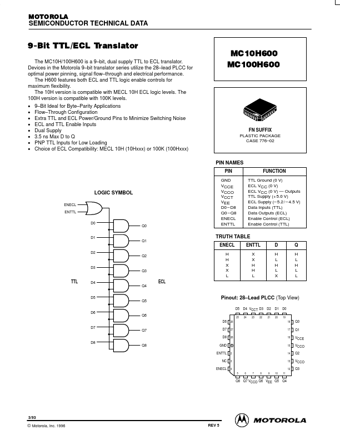

www.DataSheet4U.com MOTOROLA SEMICONDUCTOR TECHNICAL DATA 9-Bit TTLā/āECL Translator The MC10H/100H600 is a 9 *bit, dual supply TTL to ECL t.

MC10H600 Features

* both ECL and TTL logic enable controls for maximum flexibility. The 10H version is compatible with MECL 10H ECL logic levels. The 100H version is compatible with 100K levels.
* 9
* Bit Ideal for Byte
* Parity A

MC10H600 Applications

* Flow
* Through Configuration Extra TTL and ECL Power/Ground Pins to Minimize Switching Noise ECL and TTL Enable Inputs Dual Supply 3.5 ns Max D to Q PNP TTL Inputs for Low Loading Choice of ECL Compatibility: MECL 10H (10Hxxx) or 100K (100Hxxx) MC10H600 MC100H600 FN SUFFIX PLASTIC PACKAGE CA

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MC10H600, MC100H600. Please refer to the document for exact specifications by model.
